Blackmagic Design Fairlight Audio =

Description

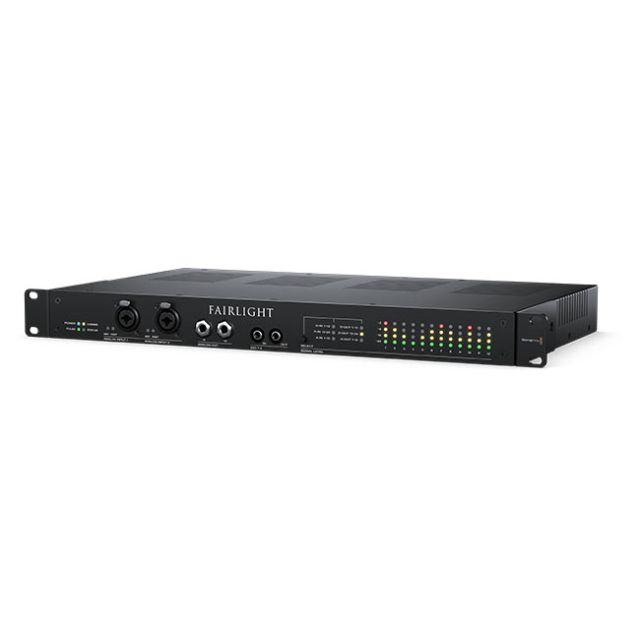

Blackmagic Fairlight Audio Interface Fairlight Audio Interface is a professional audio post production I/O interface with an extensive variety of analog and digital inputs and outputs, preamps for microphones and instruments, built in sample rate conversion, sync at any standard frame rate and dual 9 pin control ports! Fairlight Audio Interface requires Fairlight Audio Accelerator and connects to the Fairlight Audio Interface with a supplied proprietary interface cable. Connections Analog Audio Inputs 2 x remote controlled XLR/TRS microphone inputs with 48v phantom power/instrument preamps. 8 x +24dBu balanced analog inputs. Analog Audio Outputs 12 x +24dBu balanced analog outputs with mute protection. Digital Audio Inputs 9 x fully transformer coupled AES stereo digital inputs. 1 x S/PDIF input with sample-rate conversion. Digital Audio Outputs 11 x AES stereo digital outputs. 1 x stereo digital S/PDIF output. Standard 25pin Tascam interface for Analog and AES looms. Sync Input 1 x 75 ohm BNC Reference input. Tri Sync or Black Burst. 1 x 75 ohm BNC word clock input. Sync Output 1 x 75 ohm BNC Reference loop out. Tri Sync or Black Burst. 1 x 75 ohm BNC word clock regenerated output. Sync to all common frame rates and formats including HD Tri level sync, video sync, word clock and AES/EBU. Device Control 1 x RS-422 9-pin machine control input. 1 x RS-422 9-pin machine control output. Timecode Timecode input and output with regeneration. MIDI For future use GPIO GPI and GPO connections for cough and On Air control Product Specifics Sample Rate 44.1, 48, 96, 192 kHz Max Input Inputs 1-2 (mic): +2.5dBu Inputs 1-2 (instrument): +24dBu Inputs 3-10 (Line): +24dBu Gain Range Inputs 1-2: Mic Inputs: 50dB gain range (+21.5 to +71.5dB) Inputs 1-2 : Instrument Setting: 50dB gain range (+0 to +50dB) Mic E.I.N (unweighted) Inputs 1-2: -127dBu @40dB (61.5dB) Gain: 150 ohm source, 20Hz - 20kHz THD+N (mic input) Inputs 1-2: Inputs 1-2: THD+N (line input) Inputs 1-2: Inputs 3-10 : Dynamic Range (line input) Inputs 1-2 : 108dB @ 0dB gain (unweighted) Inputs 3-10: 110dB (unweighted) Input Frequency Response +0.05/-0.05dB, 20Hz - 20kHz Input Impedance Inputs 1-2 (XLR) : 2k ohm Inputs 1-2 (1/4"): >1M ohm Inputs 3-10: 15k ohm Max Output Outputs 1-12: +24 dBu THD+N (Line Outputs) Outputs 1-12: Dynamic Range (Line Output) Outputs 1-12 : 109 dB (unweighted) Output Frequency Response +0.05/-0.5dB, 20Hz - 20kHz Output Impedance Outputs 1-12 : 50 ohms Operating Systems Mac 10.15 Catalina or later. Windows 10, 64-bit. Power Requirements Power Supply Internal 100 - 240V AC 50/60Hz with IEC C14 mains input. Power Usage 40W Power Management Automatically powered-on/off only when the Fairlight Audio Accelerator is powered on. Physical Specifications Environmental Specifications Operating Temperature 0 to 40 C (32 to 104 F) Storage Temperature -20 to 60 C (-4 to 140 F) Relative Humidity 0% to 90% non-condensing What's Included Fairlight Audio Interface Fairlight Audio Interface multi-pin cable to connect to Fairlight Audio Accelerator. Warranty 1 Year Limited Manufacturer's Warranty.
