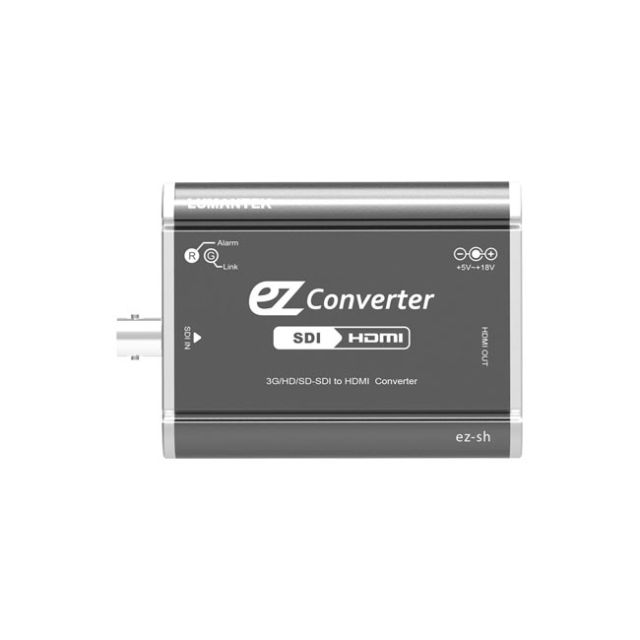

Lumantek 3G/HD/SD-SDI to HDMI =

Description

Lumantek 3G/HD/SD-SDI to HDMI Converter Parameter Units Min. Typ. Max. Video Formats - 720x480i@59.94/60 - 720x576i@50 - 1280x720p@50/59.94/60 - 1920x1080i@50/59.94/60 - 1920x1080p@23.94/24/25/29.97/30 - 1920x1080p@50/59.94/60 - - - - Audio Sample Rate - 48KHz SDI Input Connector (1 Port) - 75ohm, 1 x BNC type female Output Electrical Specifications Parameter Units Min. Typ. Max. Video Formats - 720x480i@59.94/60 - 720x576i@50 - 1280x720p@50/59.94/60 - 1920x1080i@50/59.94/60 - 1920x1080p@23.94/24/25/29.97/30 - 1920x1080p@50/59.94/60 - - - - Audio Sample Rate - 48KHz HDMI Output Connector (1 Port) - Type A General Specifications Parameter Units Min. Typ. Max. Operating Temperature 0 50 Relative humidity % 0 90 DC Input Power V 5 18 Lowest Power Consumption W 1.8 Dimensions mm 86.4x66.8x28.4 (include connector) Weight g 149
