Lumantek ez-Distributor

Description

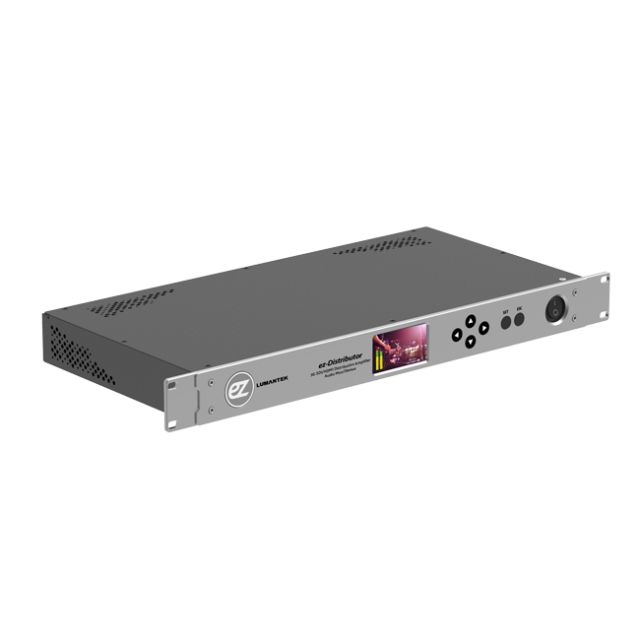

Lumantek Distribution Amplifier with LCD Monitoring (12xSDI / 2xHDMI Outputs) LUMANTEK's NEW ez-Distributor is a 14 channel distributor in 1RU size. It has 1 x HDMI and 1 x 3G-SDI input, and 2 x HDMI outputs and 12 x 3G-SDI outputs. You can embed external audio and de-embed incoming video audio. With the LCD screen, it is very easy to monitor what is being played through the distributor. System Specifications Data Input SDI Video Input: SD/HD/3G-SDI (BNC 75 ) x1 HDMI Video Input: SD/HD/3G (HDMI Type A) x1 Video Formats - 720x480i@59.94/60 - 720x576i@50 - 1280x720p@50/59.94/60 - 1920x1080i@50/59.94/60 - 1920x1080p@23.94/24/25/29.97/30 - 1920x1080p@50/59.94/60 Audio Input XLR (Female) x2 Data Output SDI Video Output: SD/HD/3G-SDI (BNC 75 ) x12 HDMI Video Output: SD/HD/3G (HDMI Type A) x2 Video Formats - 720x480i@59.94/60 - 720x576i@50 - 1280x720p@50/59.94/60 - 1920x1080i@50/59.94/60 - 1920x1080p@23.94/24/25/29.97/30 - 1920x1080p@50/59.94/60 Audio Output XLR (Male) x2 Connections Update : Debug (Micro-USB)x1 Display 2.7 inch TFT LCD : Input Video Display(SDI or HDMI), AUDIO Level Meter Display, Input Video Resolution Display Electrical Power Input: 100~240VAC @ 50/60Hz Power Consumption: 10W(max.) Operation Temperature: 0~45 C NEW Physical Dimension: 44(H) X 478(W) X 226(D) Weight: 3 kg
