Theatrixx SDI Repeater Reversible =

Description

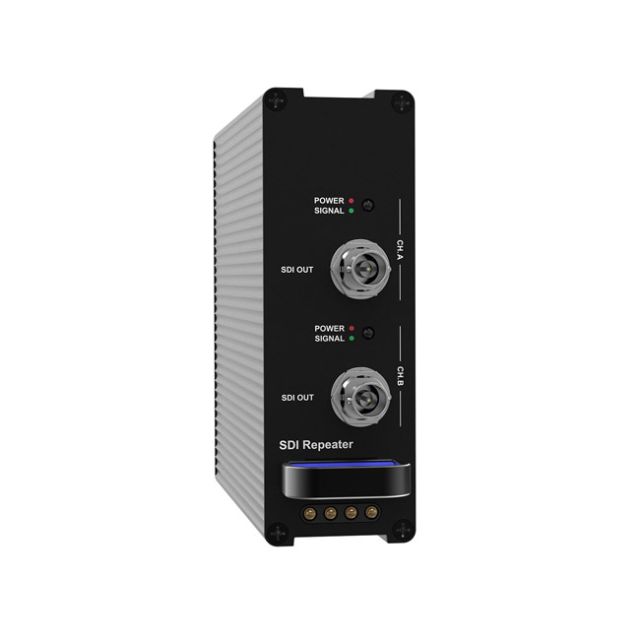

Theatrixx SDI Repeater Reversible Module The SDI Repeater dual channel Reversible Module fits in the 8-BayReversible Rackmount Converter system. The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed. Specifications Connections Video Input: 2 x 3G/HD/SD SDI BNC Video Output: 2 x 3G/HD/SD SDI BNC Supported Signals 3G Format Support: 1080p50, 1080p59.94, 1080p60 HD Format Support: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30 SD Format Support: 525/23.98 NTSC, 525/29.97 NTSC.625/25 PAL SDI Video Sampling: 4:2:2 and 4:4:4 SDI Audio Sampling: Sample rate of 48 kHz and 24 bit SDI Color Space: YUV and RGB SDI Auto Switching: Automatically detects incoming signal format SMPTE Standards: 425 M Level A & B, 424 M, 292 M, 259 M Physical Height: 121.5 mm (4.78 in) Depth: 225 mm (8.85 in) Width: 41 mm (1.61 in) Weight: 710 g (1.56 lbs) Alternate Form Factor: Also available as a standalone converter Environmental Relative Humidity: 0% to 90% non-condensing Operating Temperature: 0-40 C Power Requirements Power Supply: Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame) Power Consumption: 20W Voltage Range: 12VDC In the box Theatrixx Reversible Module SDI Repeater
