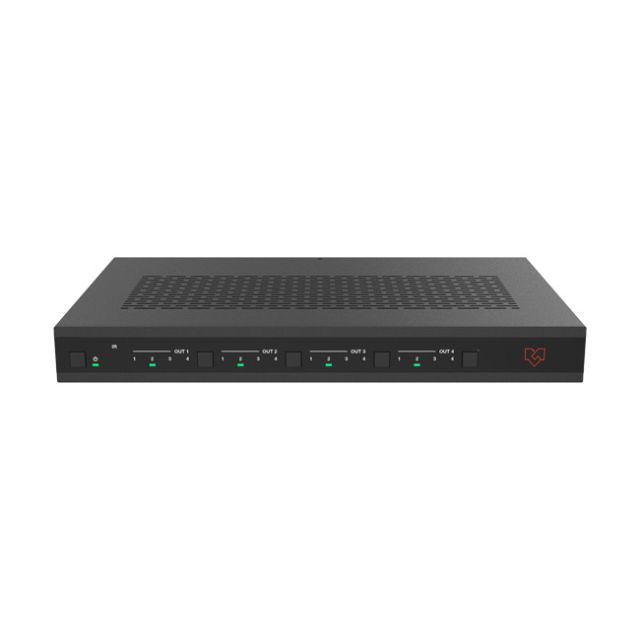

VigilLink 4K60 4x4 Seamless Matrix with =

Description

VigilLink 4K60 4x4 Seamless Matrix with Integrated Videowall Processor The 4K60 4:4:4 seamless matrix is a multi-purpose high-speed video processing system. It can be configured for 2 different output modes. It can perform as a 4 4 seamless matrix switcher and up to a 2 2 video wall solution. It features a web browser interface for controlling and configuring the matrix when used stand-alone or with a third-party control system. Control options include front-panel push buttons, IR remote control, RS-232 interface, and TCP/IP. Features Compliant HDCP 2.2 and HDCP 1.4 Features 2 operational modes: - 4 4 Matrix (seamless switch) - Video wall (2 2, 4 1 or 1 4 etc configuration) Seamless video switching Video inputs support all industry standard video resolutions including VGA-WUXGA (up to 1920 1200 @60Hz) and 480i-4K (3840x2160 @60Hz 4:4:4, 4096x2160 @60Hz 4:4:4), as specified in HDMI 2.0b HDMI outputs support upscale or downscale to any resolution, up to 4096 x 2160@60Hz4:4:4 Support LPCM, DD, DD+, DTS, Dolby TrueHD, DTS HD-master pass-through Advanced EDID management Web interface module for control and configuration of Matrix Control via front panel, IR, RS-232 and TCP/IP 3rd Party drivers available for all major home control brands Package Contents 1x 18Gbps 4x4 Seamless Matrix 1x Matrix IR Remote 1x 3pin-3.81mm Phoenix Connector (male) 1x 20-60KHz IR Wideband Receiver Cable (1.5 meters) 2x Mounting Ears 4x Machine Screws (KM3*4) 1x 12V/2.5A Locking Power Adapter 1x User Manual
