VigilLink HDMI 2.0 Audio De-embedder =

Description

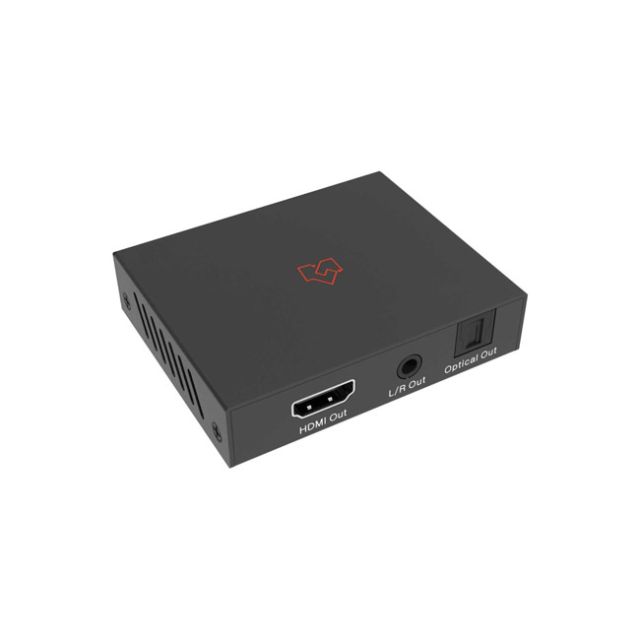

VigilLink HDMI 2.0 Audio De-embedder (18Gbps) The HDMI 18Gbps Audio Extractor could extract audio signals from any HDMI-compliant source to digital optical or analog stereo L/R audio outputs. Further, both input and output HDMI support video resolution up to 4K2K@50/60Hz (YUV444). It supports 10bits HDR (High Dynamic Range) pass-through and HDMI high resolution digital audio formats bypass, LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, and DTS-HD Master Audio, with audio sampling rate up to 192 kHz. HDCP2.2and CEC bypass is supported. Features HDMI 2.0b (18Gbps), HDCP 2.2, and DVI compliant Video resolutions up to 4K2K@50/60Hz (YUV444) Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio Optical audio supports LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH Supports HDMI High Bit Rates (HBR) audio pass-through Audio sample rates up to 192kHz 10bits HDR (High Dynamic Range) pass-through Supports CEC bypass Package Contents 1 x HDMI 18Gbps Audio Extractor 1 x 5V/1A Power Adaptor 1 User Manual
