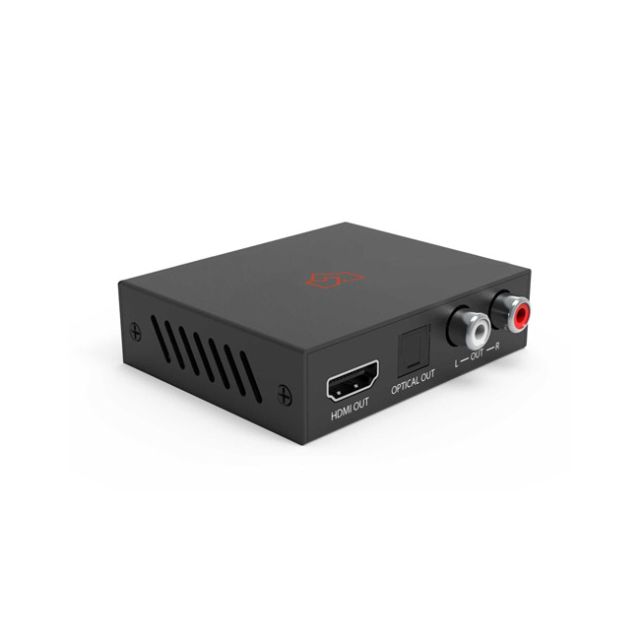

VigilLink HDMI 2.0 Audio Downmixer =

Description

VigilLink HDMI 2.0 Audio Downmixer (18Gbps) The HDMI 18Gbps Audio Extractor could extract audio signals from any HDMI-compliant source to digital optical or analog stereo L/R audio outputs. This audio extractor also supports bitstream audio down-mix to analog stereo output and keeps optical and HDMI out audio pass-through for maximum flexibility. Further, both input and output HDMI support video resolution up to 4K2K@50/60Hz (YUV444). It supports 10bits HDR (High Dynamic Range) pass-through and HDMI high resolution digital audio formats bypass, LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, and DTS-HD Master Audio, with audio sampling rate up to 192 kHz. HDCP 2.2 and CEC bypass are supported. It is manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. It is manufactured under a license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, and Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. Features HDMI 2.0b (18Gbps), HDCP 2.2, and DVI compliant Video resolutions up to 4K2K@50/60Hz (YUV444) Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio HDMI Pass-through audio input to HDMI and optical audio output Supports bitstream audio down-mix to L/R analog output Optical audio supports LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH Supports HDMI High Bit Rate (HBR) audio pass-through Audio sample rates up to 96kHz 10bits HDR (High Dynamic Range) pass-through Supports CEC pass-through Package Contents 1 HDMI 18Gbps Audio Extractor 1 5V/1A Power Adapter 1 User Manual
