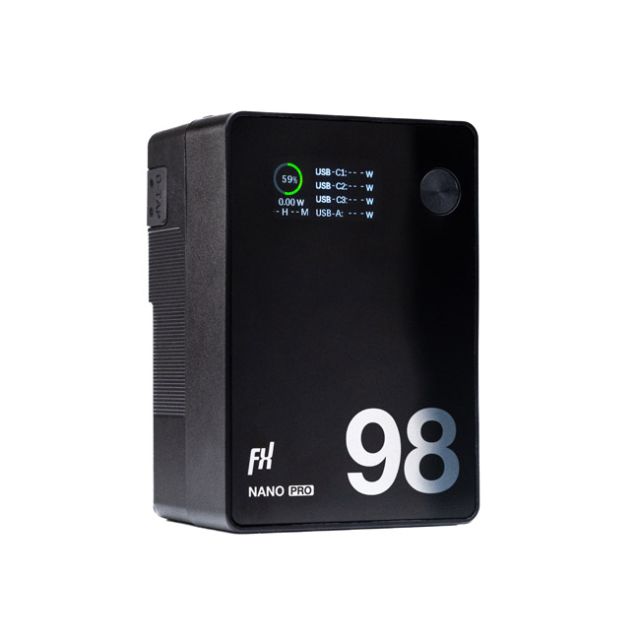

Fxlion NANO PRO

Description

Fxlion NANO PRO Key Features: Ultra-Compact Design with Maximum Energy and Volume Efficiency High-rate lithium cells, 98Wh capacity supports up to 13A high-current discharge, delivering a maximum output power of 156W Equipped with a smart LCD screen and intelligent display showing: battery capacity, input/output voltage, input/output power, charge/discharge time, cycle count, and internal temperature. Supports communication with cameras to display battery info directly on the camera Integrated intelligent BMS offering comprehensive protection: over-voltage, over-current, over-temperature, overcharge, over-discharge, and overload protection 1*USB-C PD100W input and output port, enabling ultra-fast charging and 100W high-power discharge for demanding devices Smart thermal management for the 100W PD output ensures stable operation and safety 2*USB-C 18W outputs provide simultaneous power supply for multiple devices 1*USB-A fast charging output for universal device compatibility 2*D-Tap outputs supporting up to 13A total output for powering professional-grade equipment concurrently Multiple outputs can operate simultaneously without interference V-mount plate includes both 1/4 and 3/8 threaded holes to meet various mounting and rigging requirements for professional accessories D-Tap and USB ports feature dust caps for enhanced durability and field protection Housing combines metal and V0 flame-retardant plastic, with a metal-like finish button design for improved safety and comfort during handheld operation Compatible with both professional V-mount chargers and USB-C chargers for versatile charging options Ideal for diverse applications powers smartphones, laptops, video lights, and cinema cameras, making it suitable for both consumer and professional use. Specification: Capacity: 6.8Ah / 98Wh Voltage: 14.4V Mount: V-Mount Working Current: 13A(Max) Working Power: 156W(Max) D-Tap Output*2: 10~16.8V/13A(Max) USB-A Output: 5V/3A 9V/2A 12V/1.5A Supports fast charging protocols including QC2.0, QC3.0, FCP, and BC1.2. USB-C1 Input/Output: 5V/3A 9V/3A 12V/3A 15V/3A 20V/5A 100W(Max) USB-C2&C3 Output: 5V/3A 9V/2A 12V/1.5A 18W(Max) Operating Temperature: -20 C to +55 C Charging Temperature: 0 C to +40 C Storage Temperature: -20 C to +45 C Dimensions: 108.7(L)mm 74(W)mm 54.4(H)mm Weight: 612g Optional Chargers: Compatible with professional V-mount battery chargers and USB-C chargers that support the PD protocol for smartphones and laptops. Note: PD100W charging requires an E-mark certified USB-C cable.
