IDX Micro 2-Channel Hot Swap V-Mount Adapter Plate =

Description

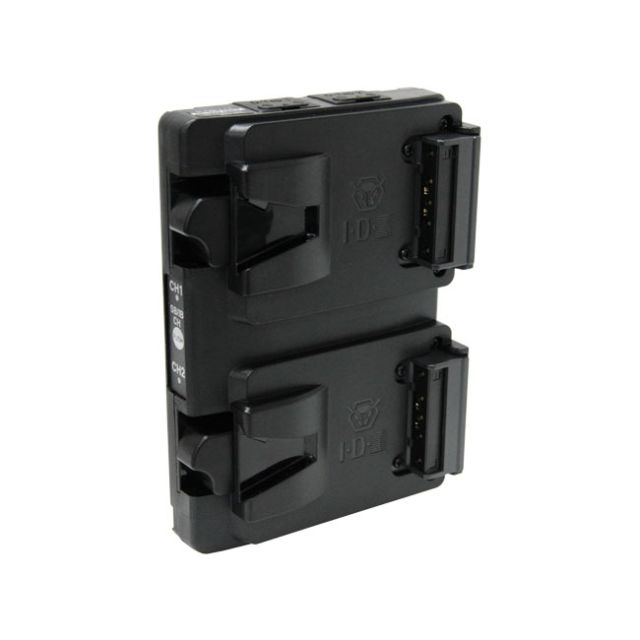

IDX Micro 2-Channel Hot Swap V-Mount Adapter Plate with 2x D-Taps & USB-C The A-Vmicro2 is a V-Mount hot swap plate to accommodate 2x Imicro batteries. Discharges one battery at a time, and will automatically switch to the next battery. Able to manually select discharging battery as well. Fitted with 2x D-Taps and a USB-C. Can also be used with IDX chargers. Batteries mounted on the A-Vmicro2 will charge sequentially. Tech Specs Output Connectors: (2) D-Tap, (1) USB-C D-Tap: Battery through voltage, 80W max USB-C: DC 5V / 2.3A max Compatibility: IDX Imicro Battery Battery Connection Terminal Rating: 154W max (16.8V/ 9.2A~11V/14A) Main Connector Rating: 154W max (16.8V/ 9.2A~11V/14A) Ambient Temperature: Charge: 0C~40C (10C~30C recommended) Discharge: -20C~45C (10C~40C recommended) Dimensions: 3.86(W) x 5.55(H) x 1.18(D) inches Weight: 0.61 lbs approx. Included Accessories: (4x) M3 x 10 Double SEMS screws
