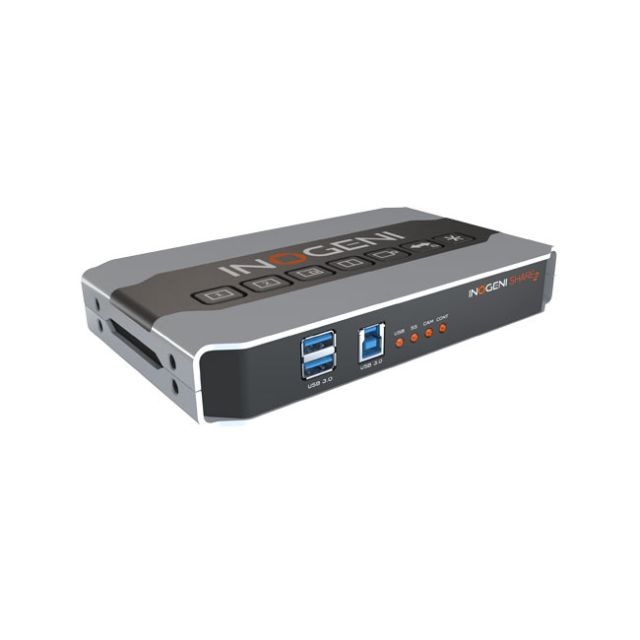

Inogeni SHARE2 Camera Mixer

Description

Inogeni SHARE2 Camera Mixer INOGENI s easy and versatile SHARE2 Camera Mixer provides Picture-In-Picture in one video flow. Create interactive presentations for collaborative meetings and HyFlex classrooms. 2 HDMI cameras mixer into a single USB 3.0 interface Engage a dynamic presentation and easily switch up to 14 mix setup videos Change camera and video configuration without cutting the flow of your presentation Ideal for remote education, collaborative meetings, webinars or live streaming Compatible with the Q-SYS Core processors See Q-SYS/INOGENI SHARE2 application notes Compatible with Barco ClickShare Conference (CX-20, CX-30 & CX-50) Output: Uncompressed video on USB 3.0 or MJPEG on USB 2.0 Audio I/O and mixer via the INOGENI Control App Controllable by LAN & RS-232 Cost-effective solution that is reliable and simple to install and connect (no driver required) Compact and robust design with its aluminium enclosure Designed and manufactured in Canada How it works The SHARE2 Dual HDMI/DVI to USB 3.0 professional camera mixer can be controlled by an application on the host side using our LAN or RS-232 interfaces. You can also use the keypad on the top of the device to control it manually. You can use the camera mixer feature of the SHARE2 to embed your two video sources into one single stream. This feature can be an important asset for you if your application only supports one video interface, like Teams , Zoom , Webex , GoToMeeting and all video conferencing applications. Easy push-button to switch easily up to 14 mix setup videos. Features The SHARE2 Dual HDMI/DVI to USB 3.0 professional camera mixer offers an array of features for a smooth and seamless experience. Control interface: LAN, RS-232, USB (Get the software upgrade : Crestron Serial & IP modules ) Local and remote keypad: REMOTE User Guide HDMI, DVI, VGA or CVBS video input connectors; VGA and CVBS are available using an adapter Unbalanced, line level stereo audio support Digital Fluid technology: Internal frame buffers maximize frame rate with any host Hardware-based color space and sampling conversion Automatic scaling and frame rate conversion Customizable video processing functions Supports multiple devices on the same host Device configuration via the INOGENI Control App Firmware upgrade available via the INOGENI Control App Compatible with the Q-SYS Core processors See Q-SYS/INOGENI SHARE2 application notes Compatible with Barco ClickShare Conference (CX-20, CX-30 & CX-50) Plug & Go INOGENI has developed numerous custom applications with our global partners. Capture, mix and switch without drivers. INOGENI makes everything work together thanks to our professional camera mixers. Compatible with all USB cameras This professional camera converter is fully compatible with all HDMI cameras, including professional-grade equipment such as Vaddio, Aver or Marshall cameras. Main feature 2:1 Camera mixer: 2:1 Camera mixer (2x HDMI cameras mixer into a single USB 3.0 interface) Simultaneous capture and mix of 1x HDMI and 1x DVI/VGA/Component Analog or digital/or CVBS + Audio into 1x1080P60 USB 3.0 signal. 14 mix setup videos: Picture-in-picutre, side-by-side Video input #1 Connector & video resolutions: 1x HDMI 1080p, 720p, 1080i, 480p, 576p, 1920 1200, 1280 1024, 1280 960, 1024 768, 800 600, 640 480 Frame rate: up to 60 Hz, all formats. #2 Connector & video resolutions: 1x DVI-I (Digital + Analog) OR- With HDMI Adapter Note: You may use the included HDMI to DVI adapter to have two HDMI inputs. DVI : 1080p, 1080i, 720p, 480p, 576p, 1920 1200, 1280 1024, 1280 960, 1024 768, 800 600, 640 480 VGA : 1080p, 720p, 480p, 576p, 1920 1200, 1680 1050, 1400 1050, 1600 1200, 1280 1024, 1360 768, 1280 768, 1280 800, 1024 768, 800 600, 640 480 Component : 1080p, 1080i, 720p, 480p, 480i, 576p and 576i CVBS 480i, 576i Frame rate: up to 60 Hz, all formats. Color space: RGB, YCbCr, 4:4:4, and 4:2:2 Video output USB: 1x USB 3.0 uncompressed up to 1080p60 (One mixed video stream) USB - Color Space ou CODEC: USB 3.0: YCbCr (YUY2) 4:2:2 8-bit USB 2.0: MJPEG USB - Video scaler: Automatic hardware-based USB - Color space conversion: Automatic hardware-based USB - Sampling conversion: Automatic hardware-based USB - Frame rate conversion: Automatic hardware-based Audio Analog audio connections: Analog stereo, line level, 3.5 mm jack Analog audio I/O: 2-channel LPCM 48kHz audio from line input Digital audio I/O: Embedded in HDMI Audio routing: See following link for SHARE2 and SHARE2U Audio routing. Control Control options: Not available Mixer control: Integrated keypad, LAN, USB-HID, INOGENI REMOTE, RS-232 (SHARE2 requires installation of COM port driver) IP interface: 10 Mbps Static address configuration through our Control App. DHCP not supported. USB Port USB expansion port: Two (2) extra USB 3.0 ports for expansion purposes. The devices connected will appear to the host Compatibility Barco ClickShare compatible: Compatible with Barco ClickShare Conference (CX-20, CX-30 & CX-50) Operating systems: NO driver installation necessary! Windows 7 and above (32/64-bit) macOS 10.10 and above Linux (kernel v2.6.38) Minimum host requirements: USB 2.0 port We recommend USB 3.0 for uncompressed video 4GB RAM Intel Core i5 or equivalent Graphic card with dedicated memory Supported cameras: Cameras and camcorders with an HDMI, DVI, VGA or CVBS output Software Compatibility: UVC-compliant. Runs with all software compatible to DirectShow, AVFoundation and V4L2. Compatible to: Teams, Zoom, Webex, Google Meet, etc. Physical details Dimensions (W x L x H): 18.5 cm x 11.0 cm x 3.0 cm 7.25 x 4.25 x 1.25 Power supply: 12V (100-240 VAC 50/60Hz to 12V/1.2A DC) Weight: 530 g (1.17 lb) Package content: 1x 1m/3.3ft USB 3.0 cable (Type-A to Type-B) 1x HDMI to DVI adapter 1x VGA to DVI adapter 1x Serial RS-232 cable (DB9 female to RJ45 plug) 1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC International adapters included in the box (AUS, EUR, UK and US) Operating temperature: 0 to 45 C 32 to 113 F Storage temperature: -40 to 105 C -40 to 221 F Relative humidity: 0% to 90% non-condensing Informations UPC code: 40232461736 Origin: Canada Warranty: 2 years Certifications HDCP-compliant: The INOGENI device does not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources. Certifications: FCC, CE, RoHS, IEC62368, SoV, RCM, KC, MSIP TAA-compliant: Yes What s in the box 1x 1m/3.3ft USB 3.0 cable (Type-A to Type-B) 1x HDMI to DVI adapter 1x VGA to DVI adapter 1x Serial RS-232 cable (DB9 female to RJ45 plug) 1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC International adapters included in the box (AUS, EUR, UK and US)
