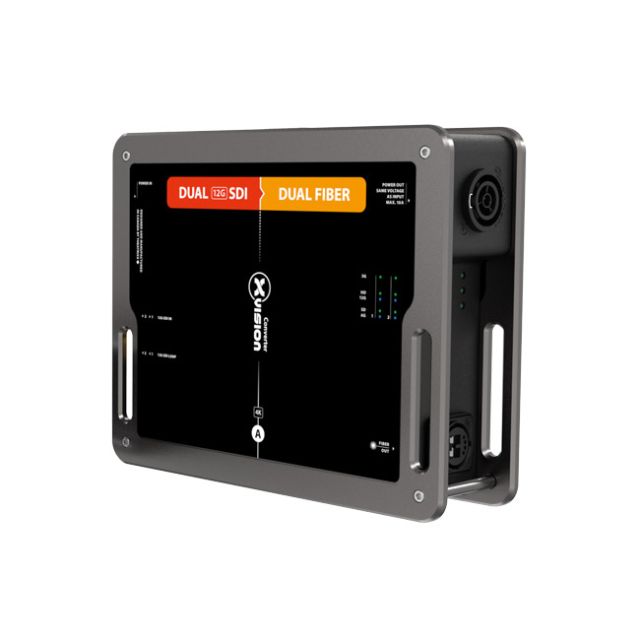

Theatrixx xVision Dual 12G-SDI to =

Description

Theatrixx xVision Dual 12G-SDI to Dual Fiber Converter Professional equipment in mission-critical applications is all about reliability and confidence. So we started with a clean sheet, and built what might soon become your most trustworthy piece of equipment. Introducing the world s first video converters truly designed for the road. Video converters nowadays are used everywhere on professional A/V events, presentations, live shows and tours and often have a critical role. Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. We wanted to change that, so we designed the xVision Video Converters. Integrated power supply with locking PowerCON Connector. Never rely on a cluster of wall-warts again. Built-in convenience AC outlet to power nearby projector, TV, laptop, small video projector Power bar to power both the converter and device not required anymore. Magnetic stacking system and non-skid rubber pad for table top application. Saves at least 10 gaffer tape rolls a year. Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and belt adaptor. Rugged, Tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come. Plug-n-play operation ; No dipswitches, buttons or menus to fumble with : It just works. Clear and ample status LED indicators for quick troubleshooting. Easy on-the-field identification with unique color and alphabetic coding system. SFP-based video transmission for interoperability with standard SDI over fiber devices. Choice of three optical connectors, each available as single- mode and multimode types. Re-clocked and amplified SDI loop thru Proudly designed and assembled in Canada. Specifications Connections Video Input: 2 x 12G/6G/3G/HD/SD SDI BNC Loop-thru: 2 x 12G/6G/3G/HD/SD SDI BNC Video Output Choice of Multimode or Singlemode Choice of Optical SDI on OpticalCON DUO or OpticalCON QUAD (see ordering information) Supported Signals Video Format: 12G/6G/3G-SDI Level A and B, HD-SDI, SD-SDI with embedded audio SMPTE Standards: 2082-1, 2082-10, 425 M Level A & B, 424 M, 292 M, 259 M Physical Height: 62 mm (2.44 in) Depth: 180 mm (7.08 in) Width: 221 mm (8.7 in) Weight: 2 kg (4.4 lbs) Alternate Form Factor: Also available as a Reversible Module Environmental Relative Humidity: 0% to 90% non-condensing Operating Temperature: 0-40 C Power Requirements Power Supply Built-in power supply PowerCon True1 input PowerCON True1 output (loop-thru) Power Consumption: 45W max. Operational Voltage Range: 100-240V, 50-60Hz Courtesy Outlet: Max 10 A, same voltage as input In the box xVision Converter Dual 12G-SDI to Dual Fiber AC Mains to PowerCON True1 cable (1.5m, specify plug type at ordering) Ordering information Option 1 Singlemode (S) Multimode (M) Option 2 OpticalCON DUO (2) OpticalCON QUAD (3)
