Theatrixx xVision Dual Fiber to Dual =

Description

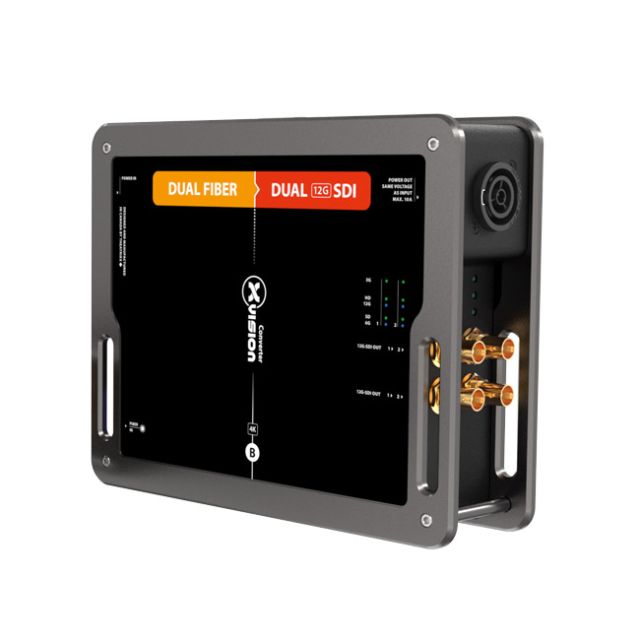

Theatrixx xVision Dual Fiber to Dual 12G-SDI Converter Professional equipment in mission-critical applications is all about reliability and confidence. So we started with a clean sheet, and built what might soon become your most trustworthy piece of equipment. Introducing the world s first video converters truly designed for the road. Video converters nowadays are used everywhere on professional A/V events, presentations, live shows and tours and often have a critical role. Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. We wanted to change that, so we designed the xVision Video Converters. Integrated power supply with locking PowerCON Connector. Never rely on a cluster of wall-warts again. Built-in convenience AC outlet to power nearby projector, TV, laptop, small video projector Power bar to power both the converter and device not required anymore. Magnetic stacking system and non-skid rubber pad for table top application. Saves at least 10 gaffer tape rolls a year. Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and belt adaptor. Rugged, Tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come. Plug-n-play operation ; No dipswitches, buttons or menus to fumble with : It just works. Clear and ample status LED indicators for quick troubleshooting. Easy on-the-field identification with unique color and alphabetic coding system. SFP-based video transmission for interoperability with standard SDI over fiber devices. Choice of three optical connectors, each available as single- mode and multimode types. Re-clocked and amplified SDI loop thru Proudly designed and assembled in Canada. Specifications Connections Video Input Choice of Multimode or Singlemode Choice of Optical SDI on OpticalCON DUO or OpticalCON QUAD (see ordering information) Video Ouput: 4 x 12G/6G/3G/HD/SD SDI BNC Supported Signals Video Format: 12G/6G/3G-SDI Level A and B, HD-SDI, SD-SDI with embedded audio SMPTE Standards: 2082-1, 2082-10, 425 M Level A & B, 424 M, 292 M, 259 M Physical Height: 62 mm (2.44 in) Depth: 180 mm (7.08 in) Width: 221 mm (8.7 in) Weight: 2 kg (4.4 lbs) Alternate Form Factor: Also available as a Reversible Module Environmental Relative Humidity: 0% to 90% non-condensing Operating Temperature: 0-40 C Power Requirements Power Supply Built-in power supply PowerCON True1 input PowerCON True1 output (loop-thru) Power Consumption: 45W max. Operational Voltage Range: 100-120V, 50-60Hz Courtesy Outlet: Max 10 A, same voltage as input In the box xVision Converter Dual Fiber to Dual 12G-SDI AC Mains to PowerCON True1 cable (1.5m, specify plug type at ordering) Ordering information Option 1 Singlemode (S) Multimode (M) Option 2 OpticalCON DUO (2) OpticalCON QUAD (3)
